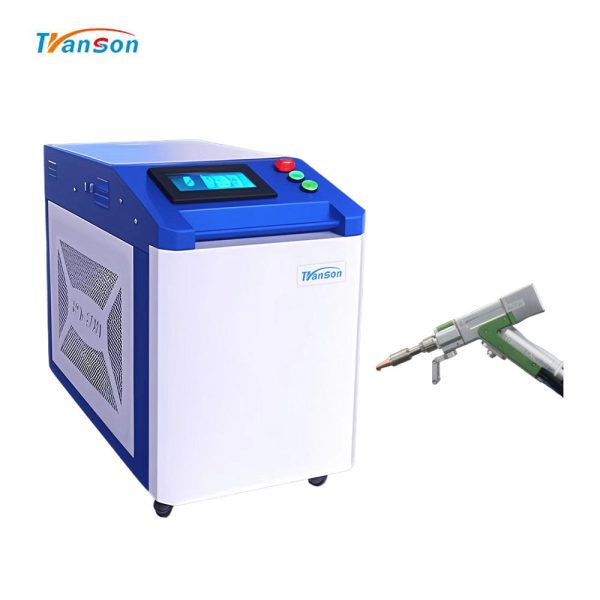

5-in-1 Fiber Laser Welding Machine – TSF-1500W / 2000W / 3000W

TSF 5-in-1 Fiber Laser Welding Machine
1500W / 2000W / 3000W

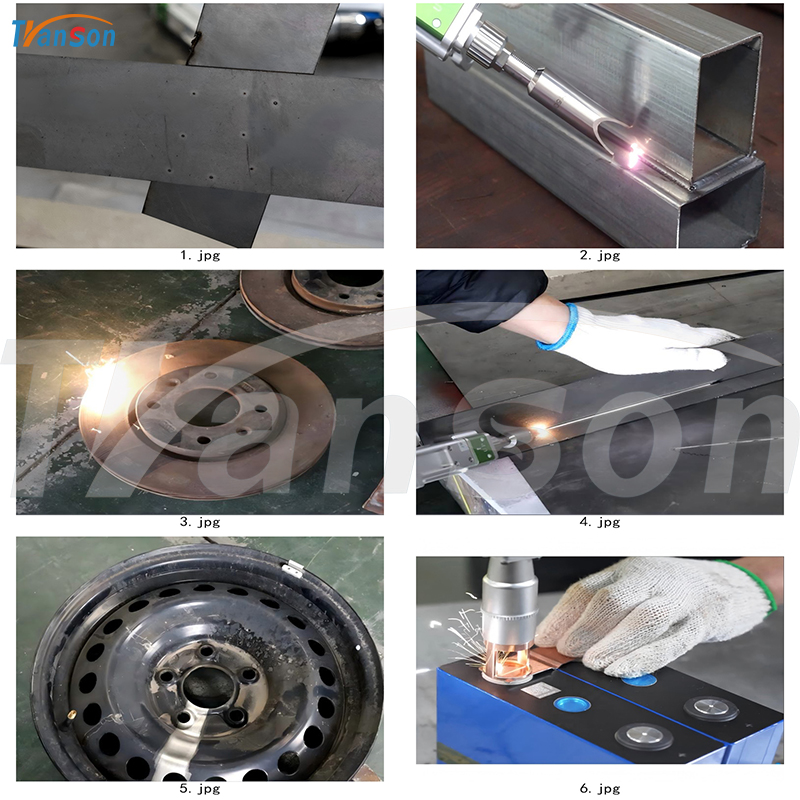

Functions:

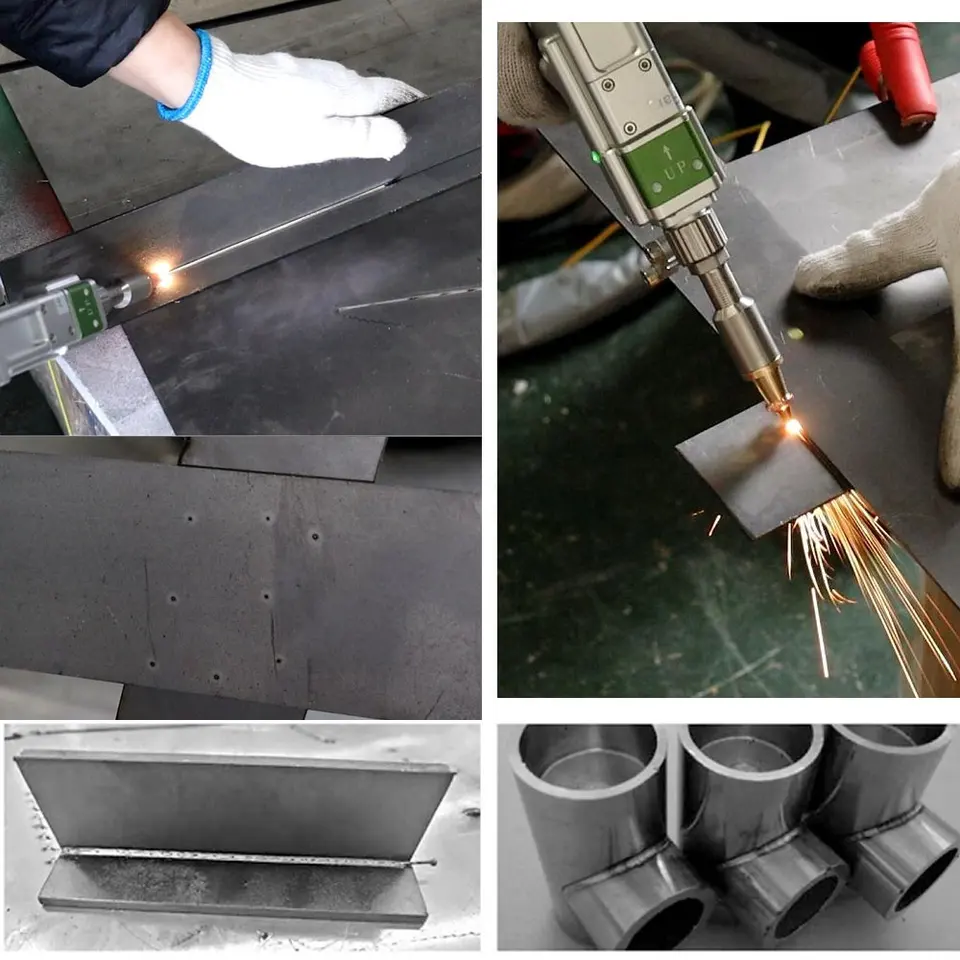

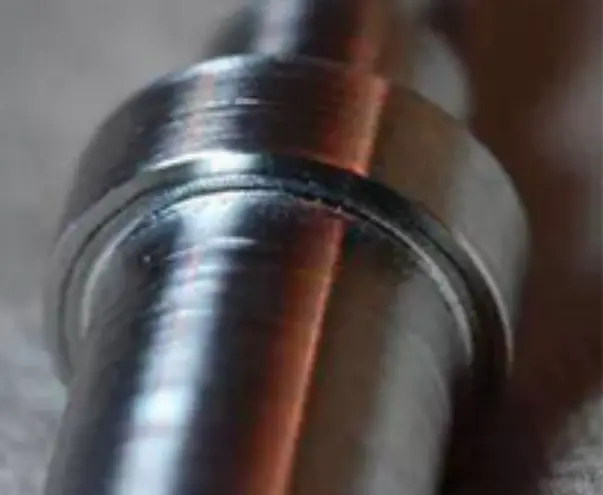

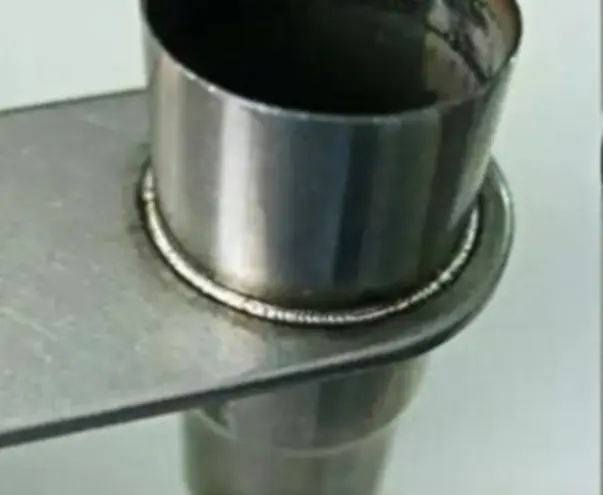

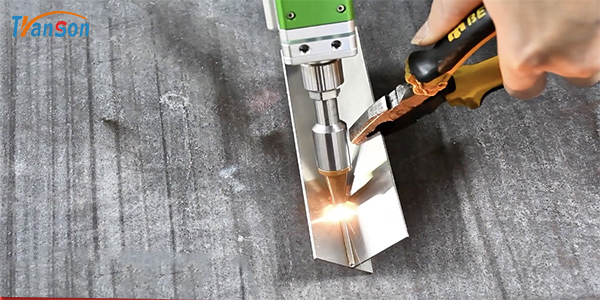

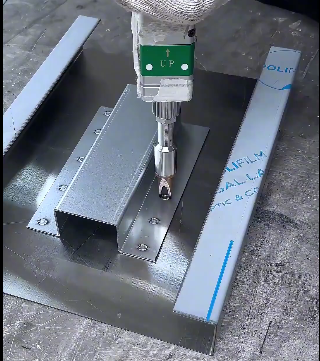

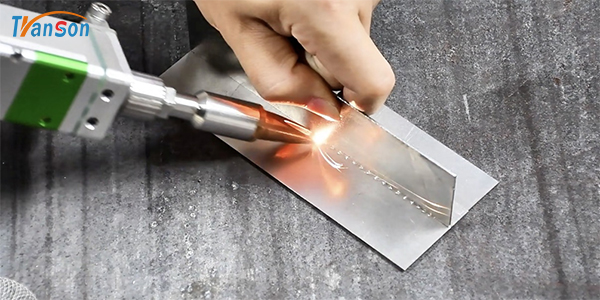

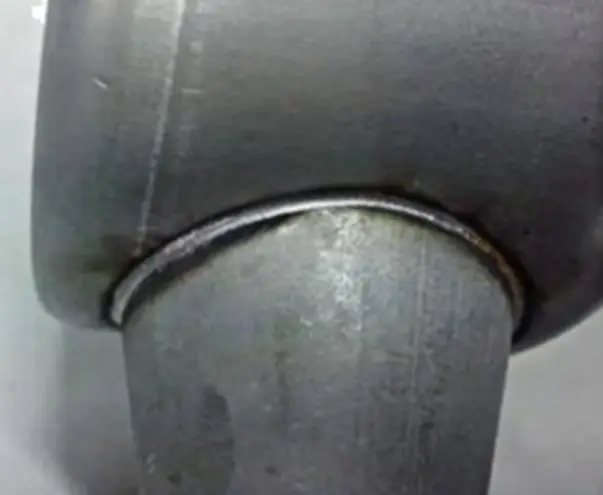

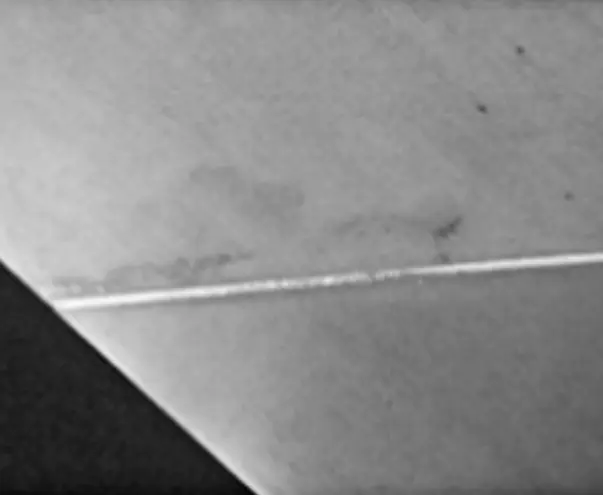

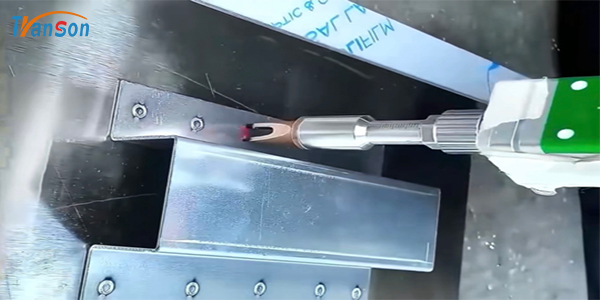

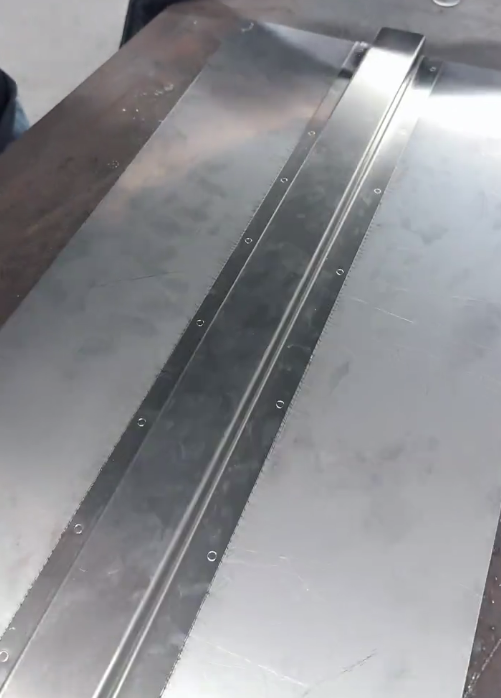

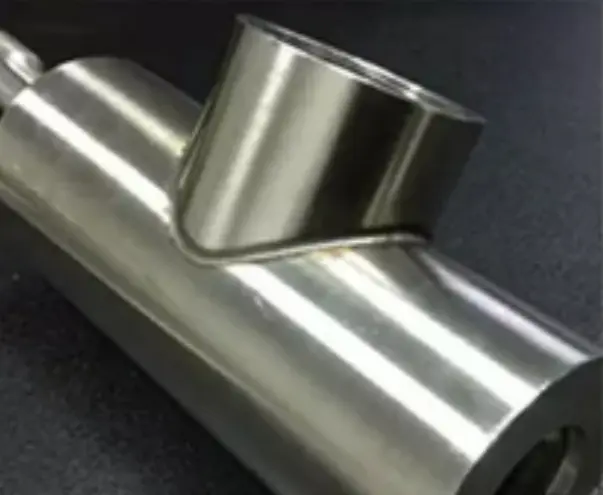

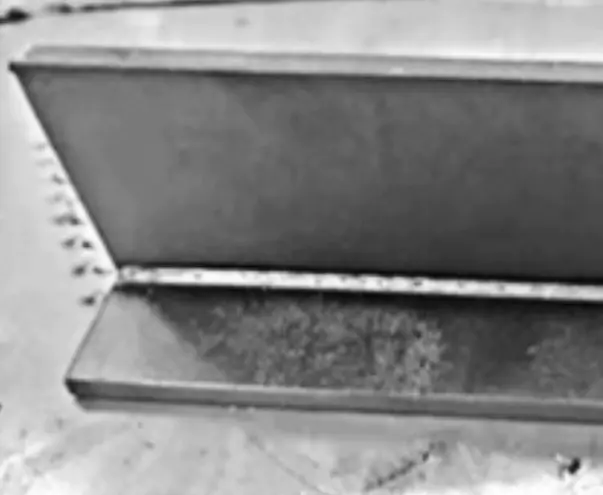

1. Welding

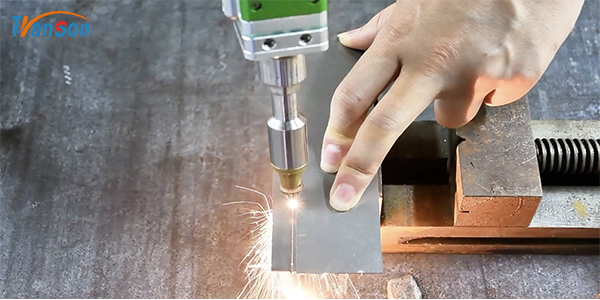

2. Cutting thin metal (0.5-3mm)

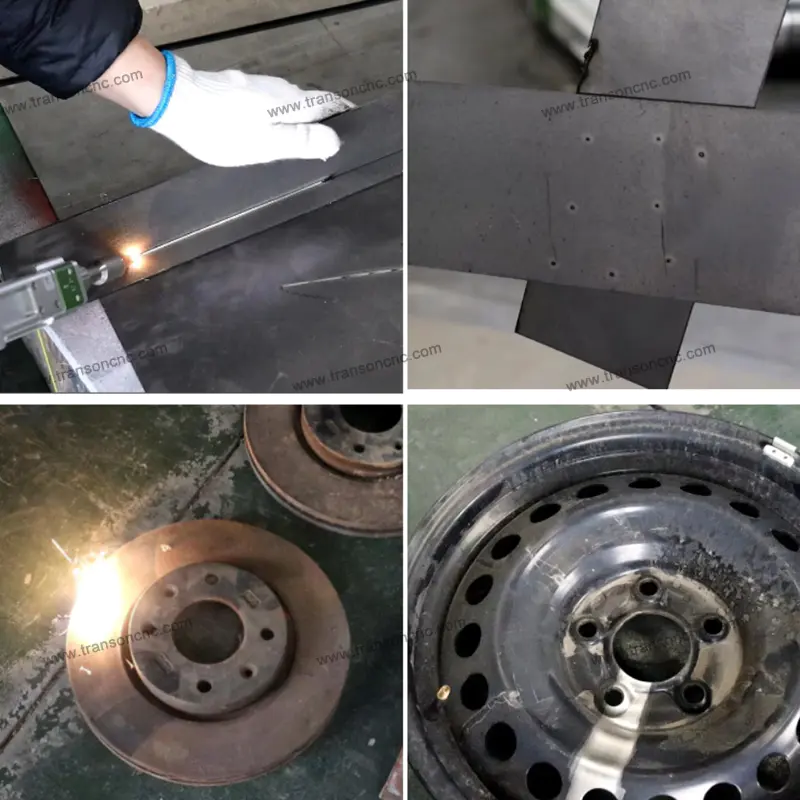

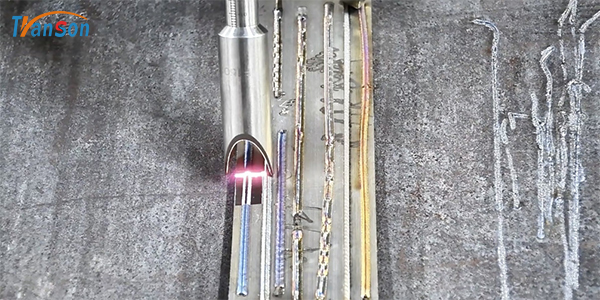

3. Cleaning laser welding seam

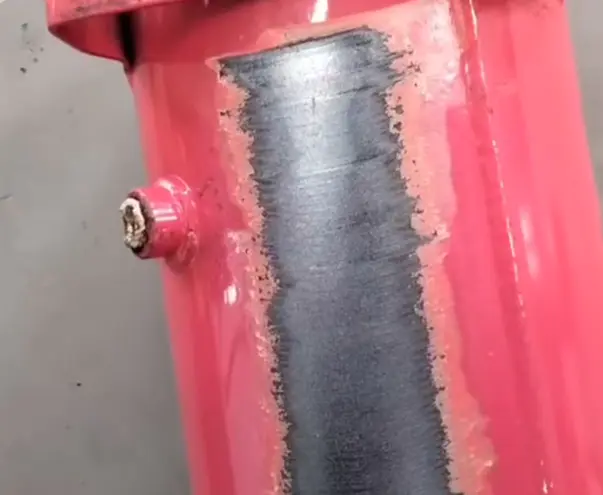

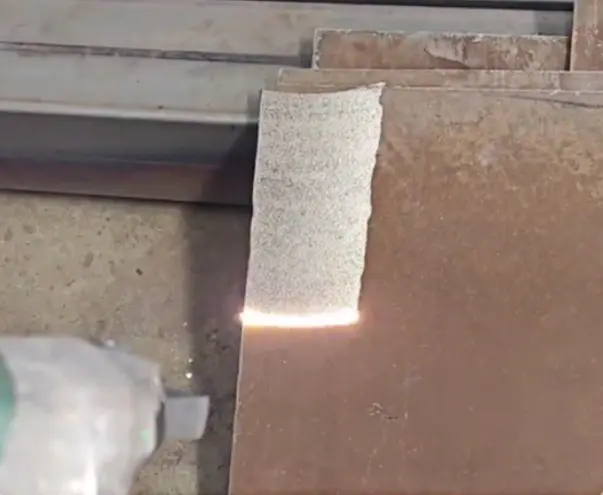

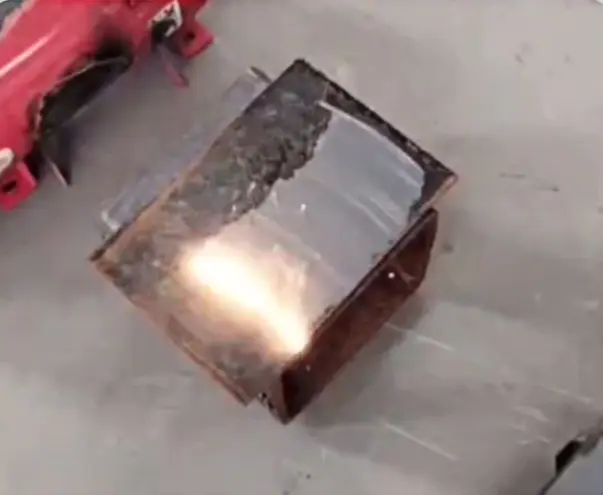

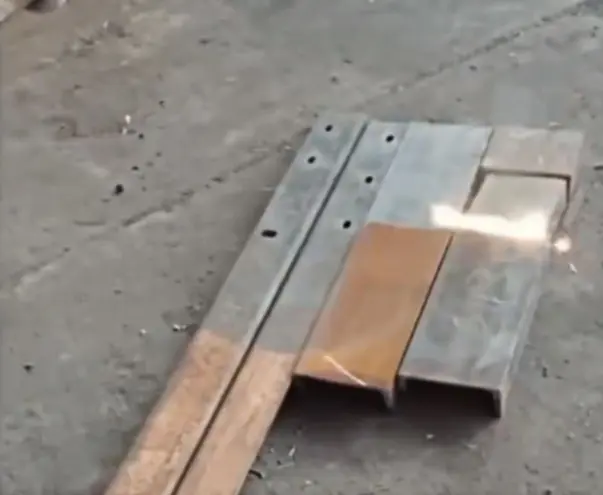

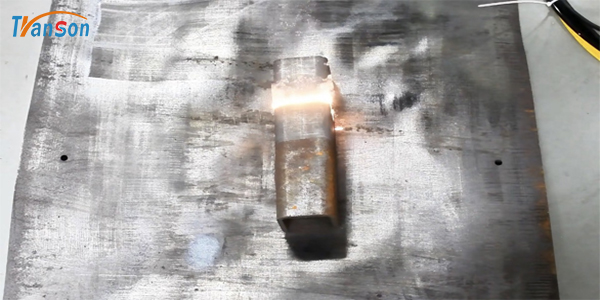

4. Rust remove

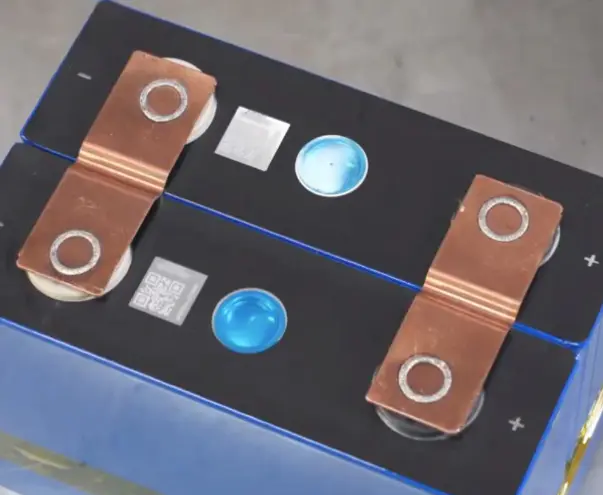

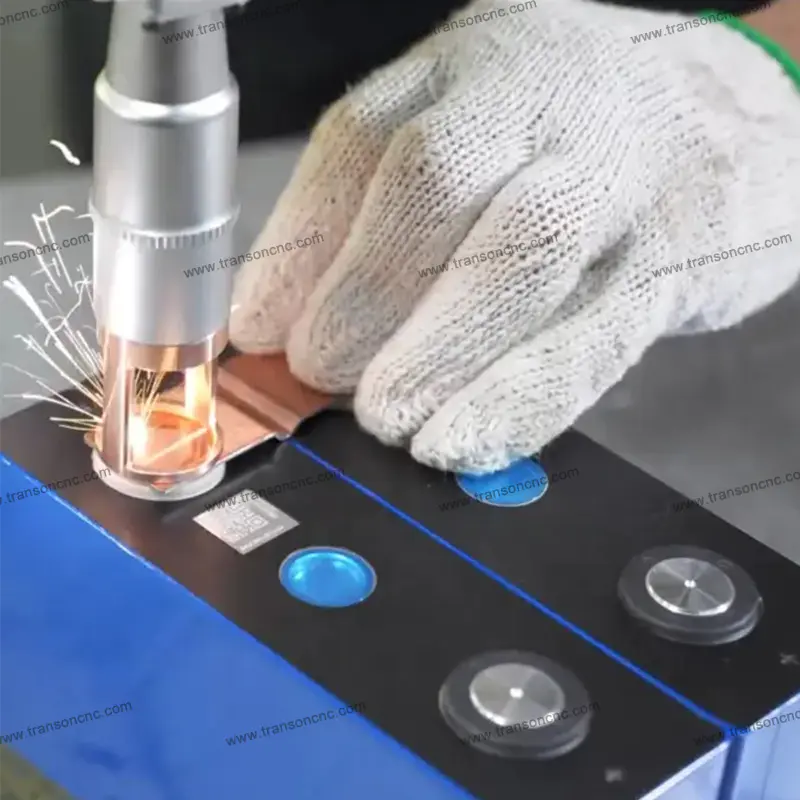

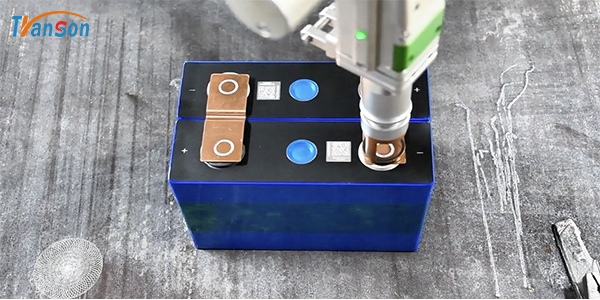

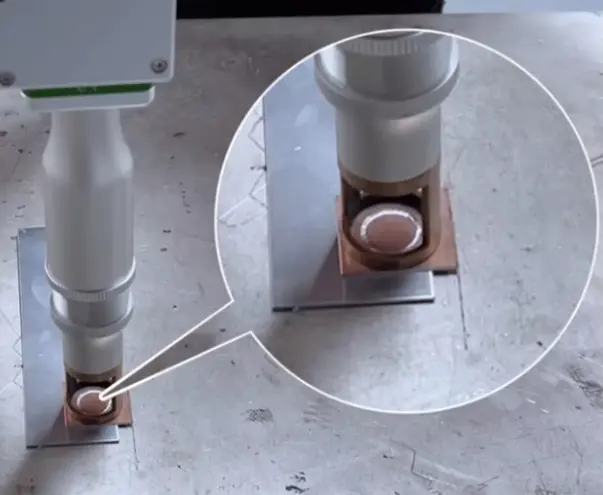

5. Battery welding (Energy storage welding)

Parameters:
– Model: TSF
– Laser Power: 1500W / 2000W / 3000W
– Cooling: Water cooling
– Laser Wavelength: 1080±5nm
– Working Temperature: 5-40°C
– Voltage: 220V±10%, 50-60hz, 1P (1500W/2000W) / 380V, 50-60hz, 3 Phase (3000W)
– Control Panel: 7-inch LCD
– Operation: Handheld model
– Optic Cable: 10m (includes ~2m inside machine)
– Humidity: ≤80%RH
– Wire Feeder: Single (Optional 1) / Dual (Optional 2, 2000W/3000W)

Electrical Requirements:
– 1500W: 220V, 1P, 7KW, 31.5A, Stabilizer >11KVA
– 2000W: 220V, 1P, 8KW, 36.3A, Stabilizer >13KVA
– 3000W: 380V, 3P, 13KW, 34.2A, Stabilizer >20KVA

Note: The machine requires assist-gas to operate. We only provide the machine; please prepare assist-gas in your workshop.
