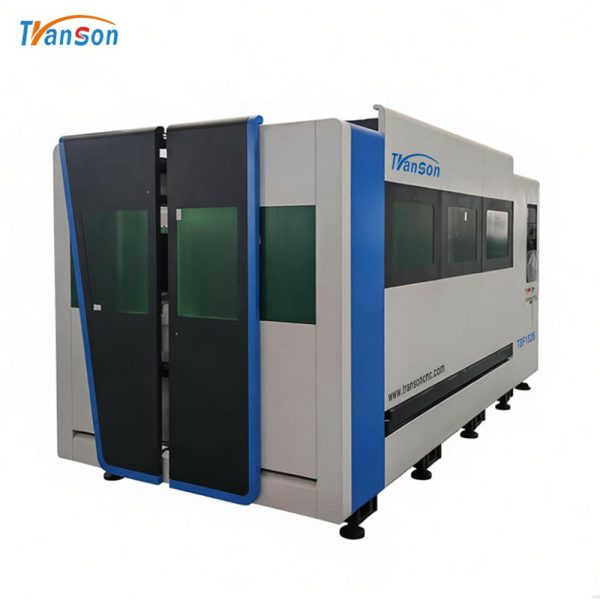

TSF1530 Sliding-Table Fiber Laser Cutting Machine – 1500x3000mm

TSF1530 Sliding-Table Fiber Laser Cutting Machine – 1500x3000mm view 1

TSF1530 Sliding-Table Fiber Laser Cutting Machine – 1500x3000mm view 2

TSF1530 Sliding-Table Fiber Laser Cutting Machine – 1500x3000mm view 3

TSF1530 Sliding-Table Fiber Laser Cutting Machine – 1500x3000mm view 4

TSF1530 Sliding-Table Fiber Laser Cutting Machine – 1500x3000mm

Model: TSF1530 | Working Area: 1500x3000mm | Laser Power: 1500W-12000W | Sliding-Table Type | Max Speed: 60m/min | Rack and Gear

Product Description

TSF1530 Sliding-Table Fiber Laser Cutting Machine

Parameters:
– Model: TSF1530
– Type: Sliding-table
– Working Area: 1500x3000mm
– Laser Power: 1500W / 2000W / 3000W / 6000W / 12000W optional
– Cooling: Water cooling
– Laser Type: Fiber, 1080±5nm
– Control System / Cutting Head: Bochu / Raytools / Au3tech optional
– X/Y Max Speed: 60m/min
– Max Acceleration: 1.0G
– Repeat Positioning Accuracy: ±0.02mm
– Voltage: 220V/50Hz, 1 Phase (1500W-2000W) / 380V/50Hz, 3 Phase (3000W-12000W)
– Drive System: Servo motor for X/Y/Z axis
– Transmission: Rack and Gear

Technical Specifications

Model TSF1530

Laser Power 1500W-12000W optional

Working Area 1500x3000mm

Positioning Accuracy ±0.02mm

Laser Source Fiber Laser, 1080±5nm

Voltage 220V/50Hz 1P (1500W-2000W), 380V/50Hz 3P (3000W-12000W)

Max Speed 60m/min

Processing Samples

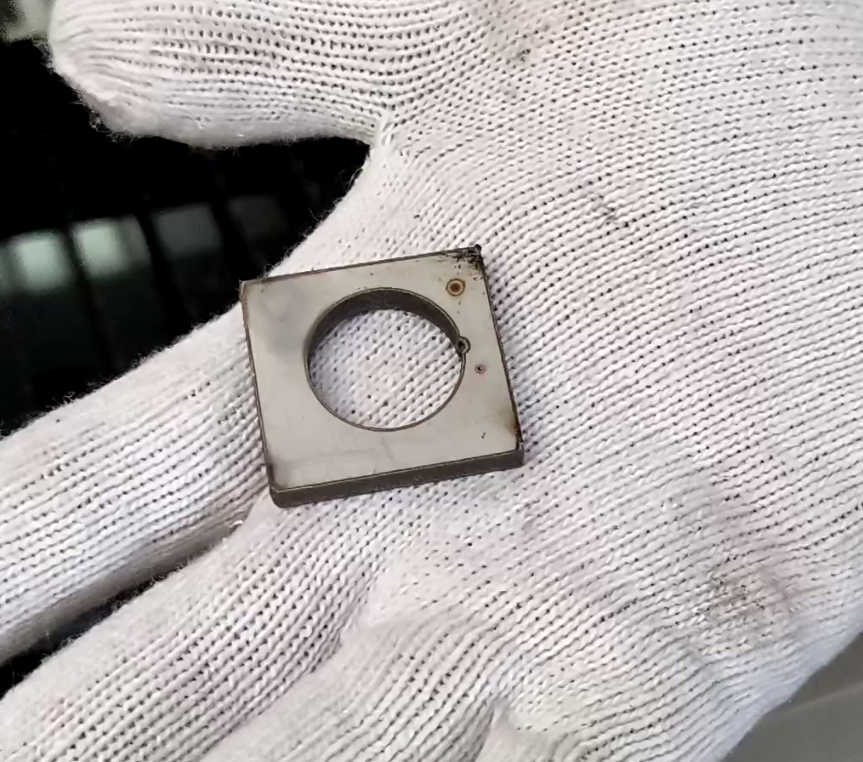

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 1

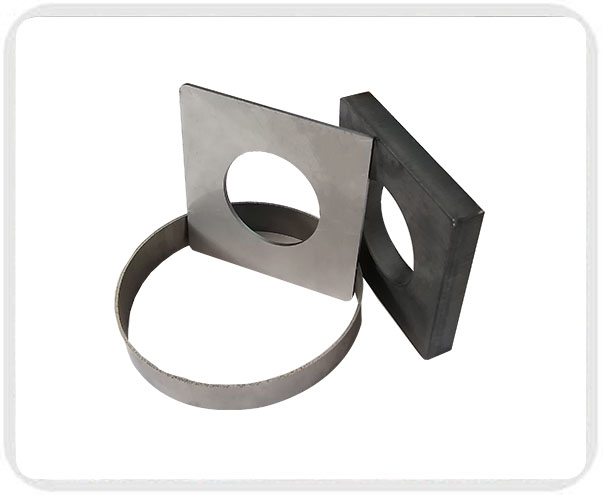

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 2

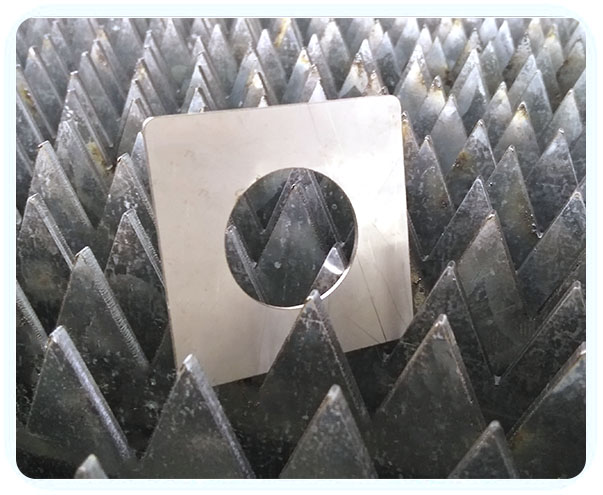

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 3

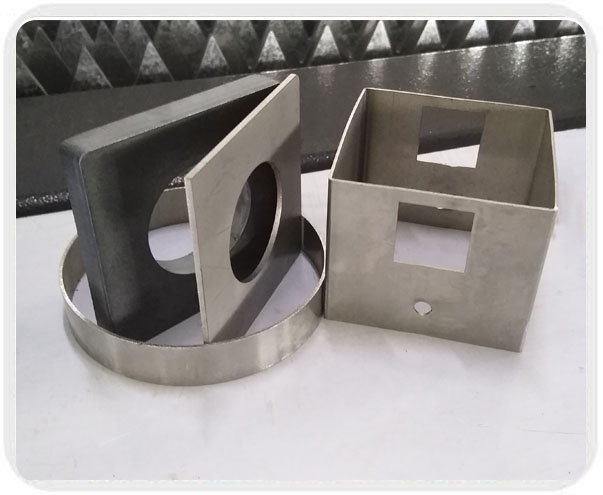

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 4

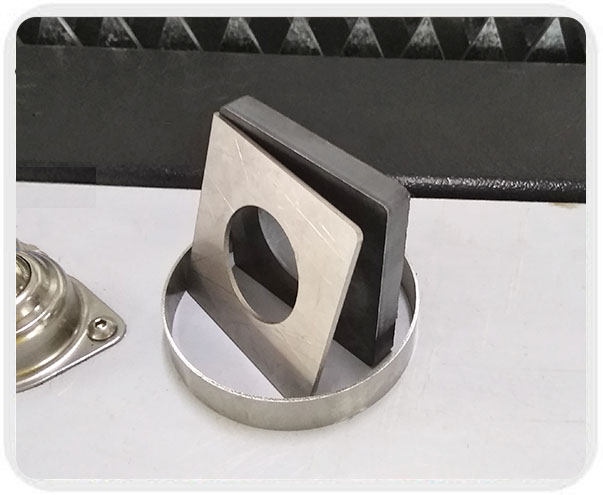

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 5

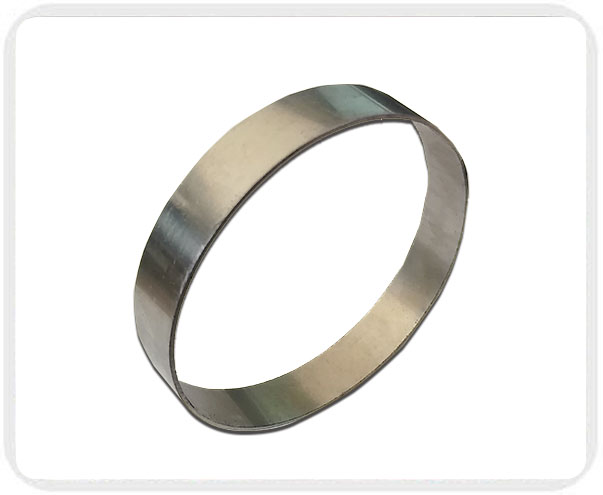

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 6

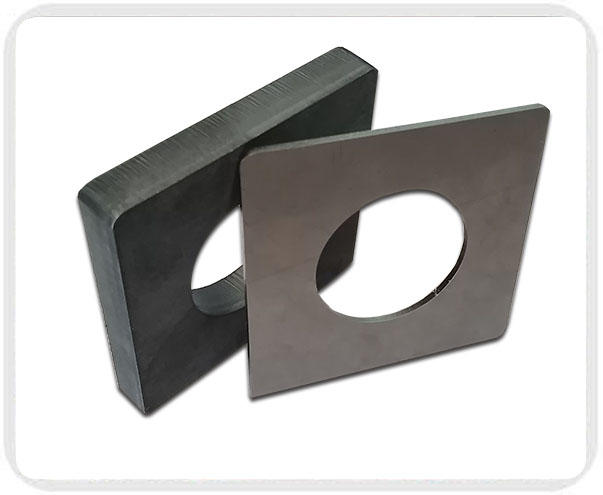

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 7

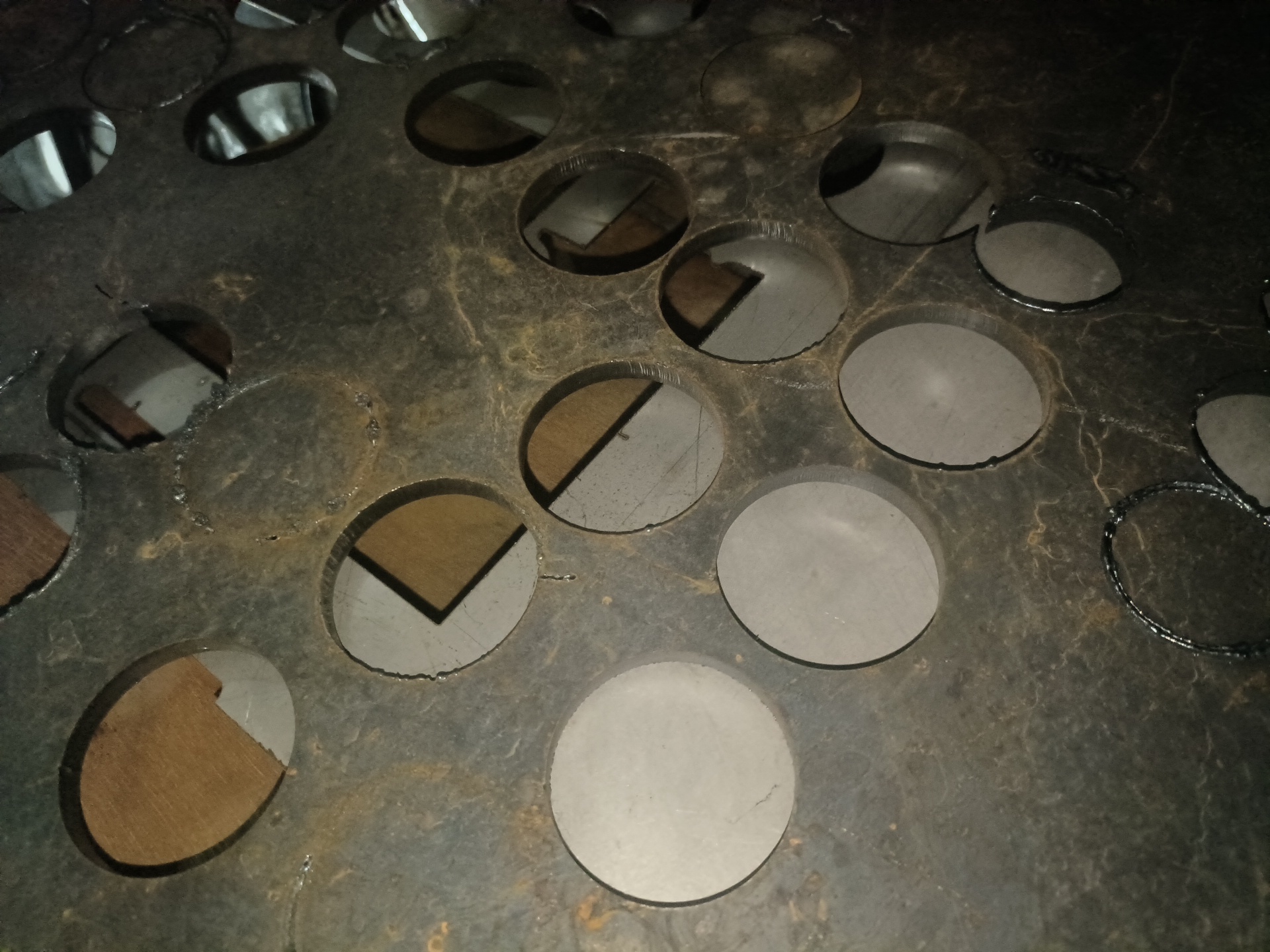

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 8

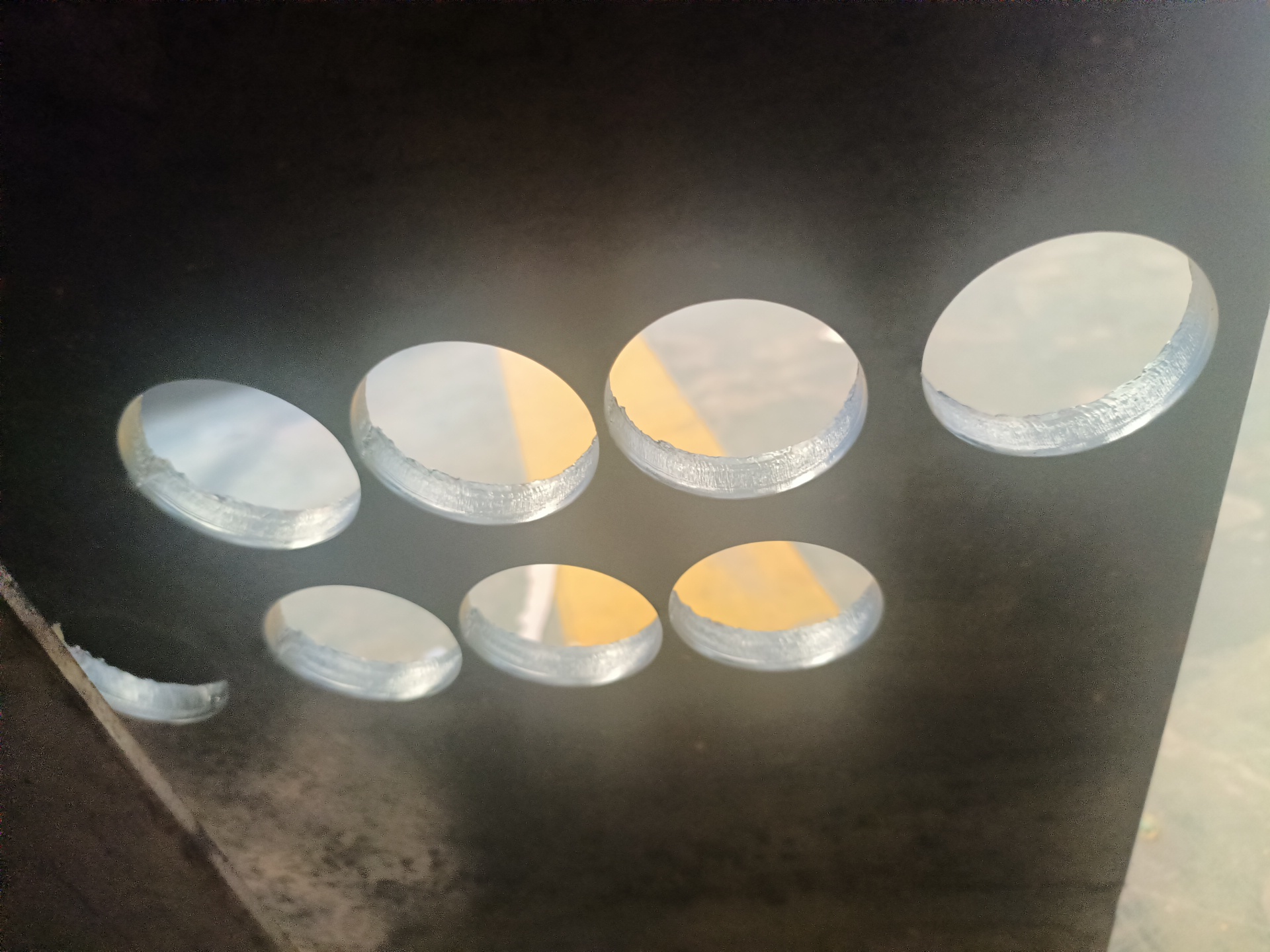

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 9

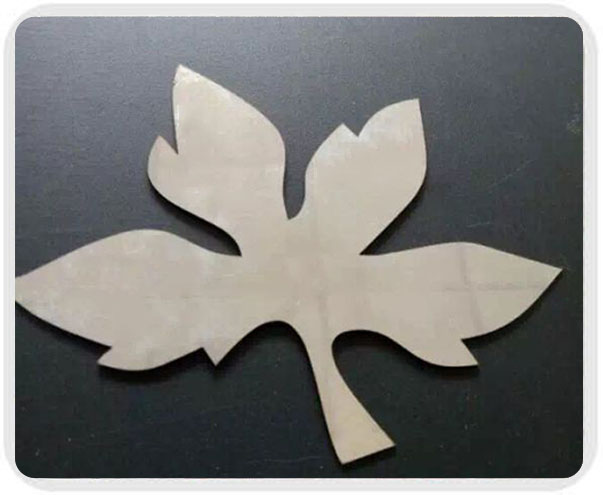

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 10

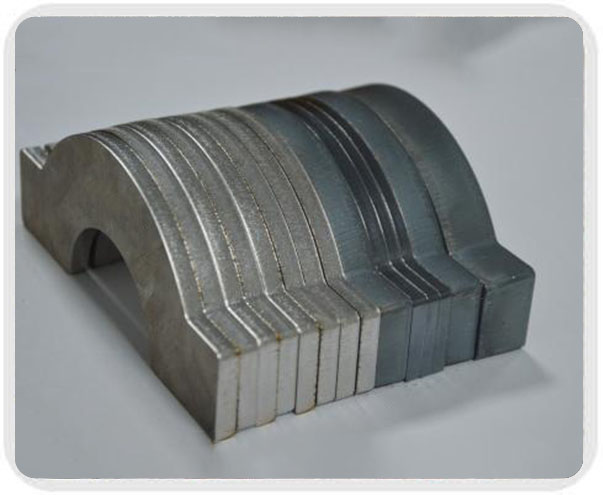

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 11

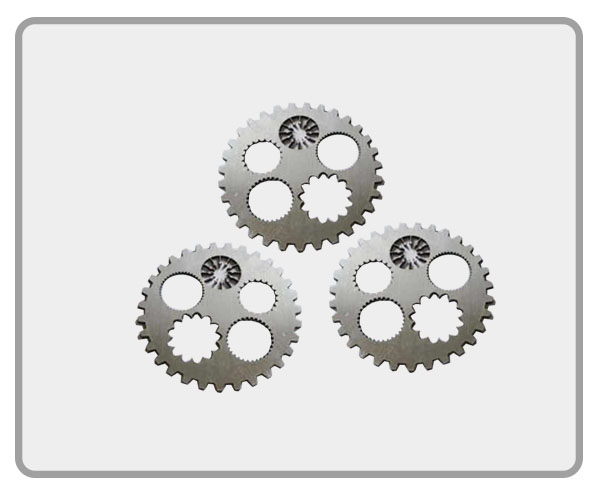

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 12

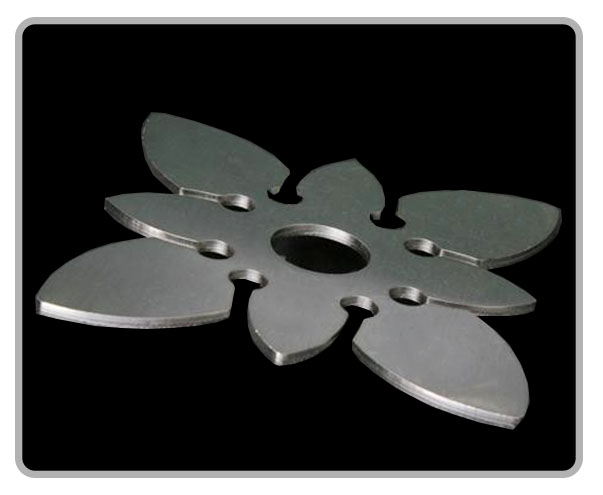

TSF1530 Sliding-Table Fiber Laser Cutting Machine Sample 13
